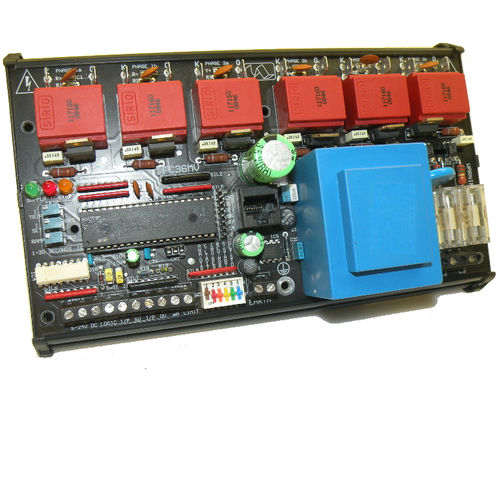

Thyristors power controller FC36MV

burstthree-phaseopen-frame type

Power Supplies  Half and Fully controlled Rectifiers  AC Motor Control  DC Motor Control  Soft Starters  Heater Controllers  Induction Generator  AC Voltage Regulation  Three Phase Transformer Control Additional Firing boards can be configured to trigger paralleled SCR’s for very high current applications or to provide a twelve pulse driver for smooth DC control Optional Extras Din rail housing (W30105) Commander module (A402131) Signal conditioning board (A402086) Thyristor modules,fuses & complete assemblies. KEY FEATURES Thyristors require a high initial gate current pulse and comparatively wide sustaining pulses to ensure reliable firing, particularly at small phase control angles. The FC36MV provides the following firing specifications
