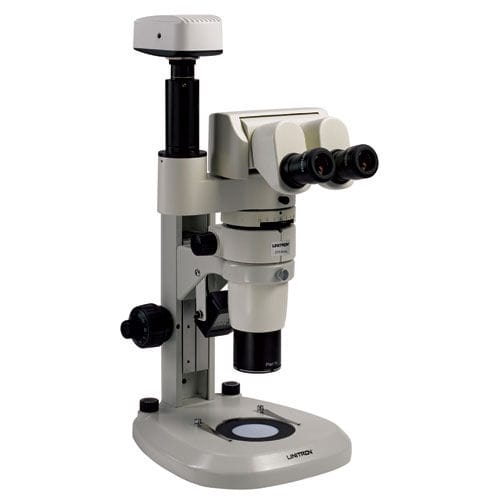

Optical stereo microscope Z6 series

inspectioneducationalindustrial

The UNITRON Z6 Series is a modular system designed to deliver exceptional ergonomic and optical performance. Our most popular parallel light path stereo microscope, the Z6 Series features a 6.3:1 zoom ratio, and is our top choice for medical device manufacturing, industrial inspection, assembly, quality control, OEM integration and research applications. Users can select either an ergo tilting binocular head with an adjustable viewing angle of 0° – 35° for true fatigue-free viewing, or a binocular head with a 20° angle and extended eyetubes for maximum viewing comfort. All systems can easily add a photo port/beam splitter for attaching a camera to enable image capture or output to a video monitor. The Z6 is also available with a dual observation attachment, great for instruction! Specifications • Binocular viewing head, 20° inclined • Widefield 10x/24mm focusing eyepieces • 0.8x to 5.0x zoom magnification range • 6:1 Zoom Ratio • Magnification Range 8x to 50x (with 10x eyepieces) • Variable Zoom Magnification System with Parallel optical axis (Galilean optical system; Common Main Objective) • Interpupillary Distance Adjustment 51mm – 75mm • Click-stops at 1, 2, 3, 4, 5x positions • 1x Plan Achromat objective (N.A. 0.09); 0.3x, 0.5x, 2.0x optional • 78mm working distance • Airtight and anti-mold design • NOTE: All photos shown with optional stands, illumination and accessories • Shipping size 17x13x11 inches • Shipping weight 6lbs.
