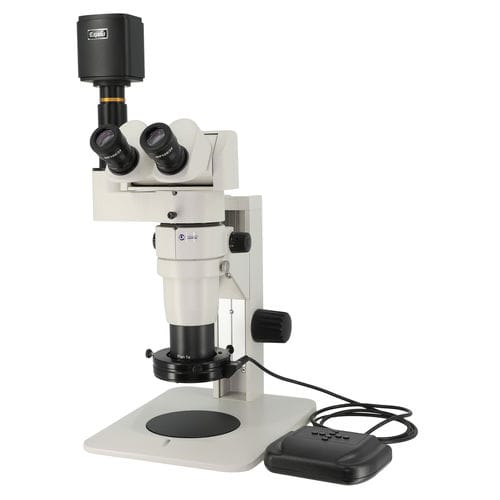

Optical stereo microscope 374 series

industrialtrinocularbenchtop

LX Microscopes by UNITRON’s System 374 is the newest addition to our industry renowned, ergonomic microscope family. The ergonomic features of the System 374 are ideal for prolonged use and offer added flexibility for multiple operator usage. Distortion free viewing through a high quality, 24mm optics system provides a 4X-25X magnification range when used with a 0.5X Reducing lens or an 8X-50X magnification range when used with a 1.0X Objective lens. Easy to adjust, tilting binocular eyetubes can be inclined from 0° to 30° and the eyetubes can be rotated 180° to increase the height by an additional 3 inches. System 374 models allow operators to simultaneously view images on screen and through the eyepieces improving productivity. Select models include our full featured, Excelis™ HD 6MP Camera. Specifications • Ergonomic trinocular viewing body with 0° to 30° adjustable inclination eyetubes • Eyetubes rotate 180° increasing height by up to 3 inches • WF10X/24mm field of view focusing eyepieces with roll down eyeguards • Magnification range 4X to 25X (with 10X eyepieces) • 186mm working distance • 0.5X Reducing lens included • Ball bearing boom stand with base, 22.5” length of horizontal boom, solid aluminum vertical post with overall vertical height of 16”, 11 1/8" x 10 1/4" x 7/8" base • Camera ready configuration, (video adapter and camera are not included) • Lighting ready configuration, (lighting is not included) • Simultaneous view images on screen and through the eyepieces • Shipping weight 63 lbs.
