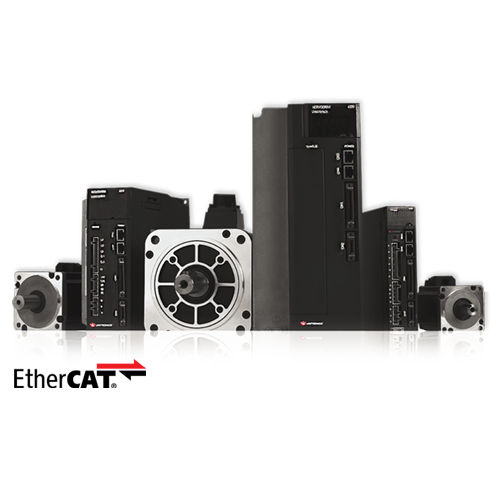

Servo-driven servomotor
ACasynchronous400 V

servo-driven servomotor
servo-driven servomotor
servo-driven servomotor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
400 V, 200 V
Protection class
IP65, robust
Other characteristics
CANopen, EtherCAT, servo-driven, NEMA
Power

Max.: 5 kW
(6.798 hp)

Min.: 0.05 kW
(0.068 hp)

Intensity

Max.: 45 A

Min.: 0.6 A

Torque

Max.: 23.9 Nm
(17.6277 ft.lb)

Min.: 0.16 Nm
(0.118 ft.lb)

Rotational speed

2,000 rpm, 3,000 rpm
(12,566.37 rad.min-1, 18,849.56 rad.min-1)

Description

• Drives: single and three-phase, robotic cables available • Wide servo power range – 0.05kW up to 5 kW (0.06-6.7 HP) • Motors: to suit any machine size; robust, built-in high-resolution serial encoders (absolute: 23-bit , incremental: 20-bit), IP65 • Built-in communications: EtherCAT1 or CANopen
