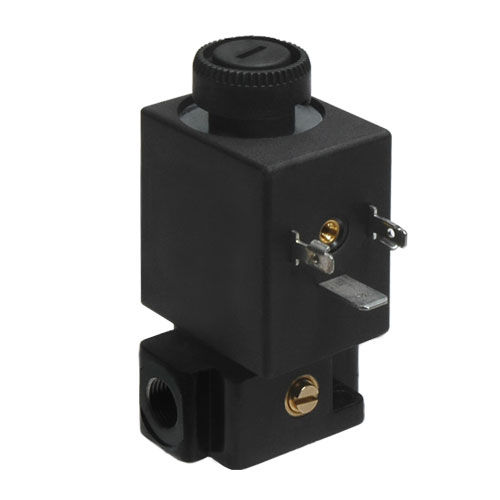

Poppet pneumatic directional control valve AB series

solenoid-operated3/2-way2/2-way

□ Miniature electropilots U2 Direct intervention electropilots with poppet valve system and bottom cushioned seals •Assembly on sub base •Threaded connections on the body -CNOMO interface -Orientable coil (360°) separated from mechanical part -Versions: 2/2 3/2 - NC NO -Original Univer SPEED modular sub-base TECHNICAL CHARACTERISTICS Ambient temperature Fluid temperature Fluid Commutation system Ways/Positions Pressure -10 +50 °C max +95°C filtered air 10 pm, lubricated or not (upon request other fluids can be used) direct intervention poppet valve system with cushioned seals 2/2 NC, 3/2 NC, 3/2 NO ‘ 2/2, 3/2NC = 0+ 10 3/2 NO = 3 + 10 Controlelectric Returnmechanical spring Connectionson sub-base or with threaded connections on the body sub-baseG 1/8M5CNOMO Nominal 0 (mm)2,1-2,42,1-2,41,6 -62,1-2,4 Nominal flow rate (Nl/min)92-150100+15595-65092-110 CONSTRUCTIVE CHARACTERISTICS Materialssee features below lELECTRIC CHARACTERISTICS SeriesU2 CoilDB Power consumption11W (DC) - 10VA (AC) ConnectorAM 5111 vouage12 V DC - 24 V DC - 24 V AC - 110 V AC - 230 V AC
