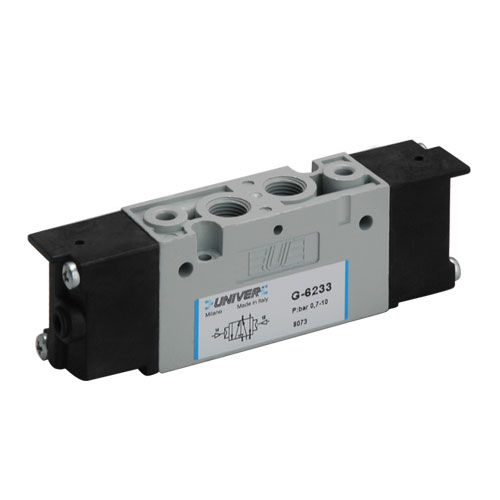

Spool pneumatic directional control valve G6 serieselectrically-operated3/2-way5/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- electrically-operated
- Ports/positions
- 3/2-way, 5/2-way, 5/3-way
- Other characteristics
- compact
- Operating pressure
Max.: 9 bar
(130.53 psi)Min.: 2 bar
(29.01 psi)- Flow rate
670 l/min, 700 l/min, 770 l/min
(177 us gal/min, 184.9 us gal/min, 203.4 us gal/min)
Description
G6
20 mm - G 1 /8 Valves and solenoid valves
-G1/8 threaded valve body with traditional Univer spool system -Version with integrated electrical connection and esternal connection -Compact design
-High flow rate
-Versions available: 5/2 - 5/3 - 3/2+3/2
TECHNICAL CHARACTERISTICS
Ambient temperature-20 -5- +50 °C
Fluid temperaturemax +50 °C
Fluidfiltered air 50 pm not dehumidified, lubricated or not
Commutation systemspool
Ways/Positions5/2, 5/3, 3/2+3/2
Pressure1,5 + 9 bar
Controlindirect electro-pneumatic, pneumatic
Returnmechanical spring, pneumomechanical spring
ConnectionsG1/8
Nominal 05 mm
Nominal flow rate (Nl/min)5/2 = 770 5/3 = 700 3/2+3/2 = 670
