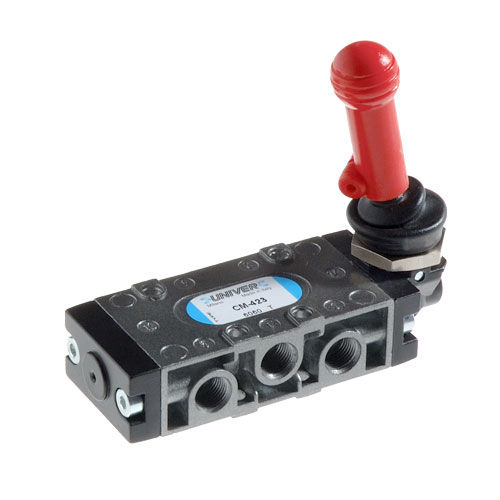

Spool pneumatic directional control valve CL, CM series

pneumaticlever-operated3/2-way

CL-CM UNIVERSAL Distributors G1/8 - G1/4 -UNIVERSAL Modular System: possibility to create a lot of different valves with a short number of basis elements -Control: manual, mechanical, pneumatic, electric -Traditional UNIVER spool system: fluctuating seals of special compount to reduce frinction and prevent sticking -High flow rate, high cycle life, suitable for vacuum application -Modular sub bases TECHNICAL CHARACTERISTICS Ambient temperature-10 + +45 °C Fluid temperaturemax +50 °C Fluidfiltered air 50 pm not dehumidified, lubricated or not Commutation systemspool Ways/Positions3/2 NC, 3/2 NO, 3/2 NC-NO, 5/2, 5/3 Pressuremax 10 bar Controlindirect electro-pneumatic, pneumatic, manual, mechanical Returnpneumatic spring, mechanical spring ConnectionsG1/8G1/4 Nominal 0 mm6,58,5 Nominal flow rate (Nl/min)8901480 CONSTRUCTIVE CHARACTERISTICS Valve bodyG1/8 = die-cast zamak G1/4 = aluminium Sealsnitrile rubber Actuatorstechnopolymer/aluminium Spoolaluminium Sub-basezamak ELECTRIC CHARACTERISTICS ElectropilotU1 CoilDA Power consumption3,5 W (DC) - 5 VA (AC) ConnectorAM 5110 Voltage12 V DC-24 V DC-24 VAC -110 VAC-230 VAC Manual overridewith 2 positions screw
