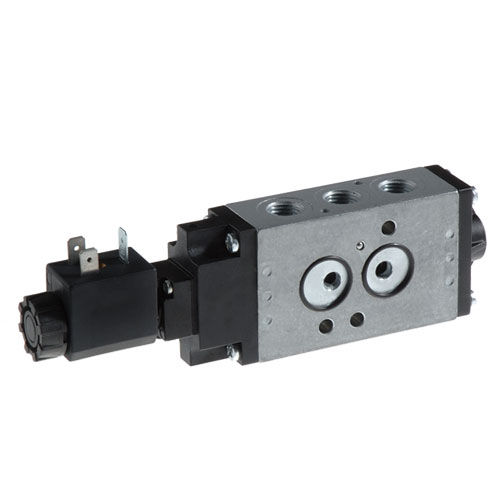

Spool pneumatic directional control valve AC-N series

poppetpneumaticelectrically-operated

flC-N NAMUR valve -Mixed commutation system (spool-poppet) -High flow rate -Quick response time -High cycle rates -Control: pneumatic, electric -Suitable for rotating pneumatic actuators used in industrial plants for the distribution of fluids -NAMUR VDI/VDE 3845 interface TECHNICAL FEATURES | Ambient temperature-10 + 45 °C Fluid temperature-10 + 50°C Fluidfiltered air 50 pm, lubricated or not Commutation Systempoppet mixed System Ways/Positions5/2 Pressure10 bar max Controlpneumatic, electric Returnpneumomechanical spring, pneumatic, electric Connections1 -3-5: Gl /4 2-4: NAMUR interface Nominai 08 mm Nominai flow rate1200 Nl/min TECHNICAL FEATURES Valve bodyzamak Sealspolyurethane - nitrile rubber Actuatorstechno polymer Spoolaluminium ELECTRIC FEATURES ElectropilotU1 CoilDA Power consumption3,5 W (DC) - 5 VA (AC) ConnectorAM-5110 Voltage12 V DC - 24 V DC - 24 V AC - 110 V AC - 230 V AC Manual overridewith 2 position screw
