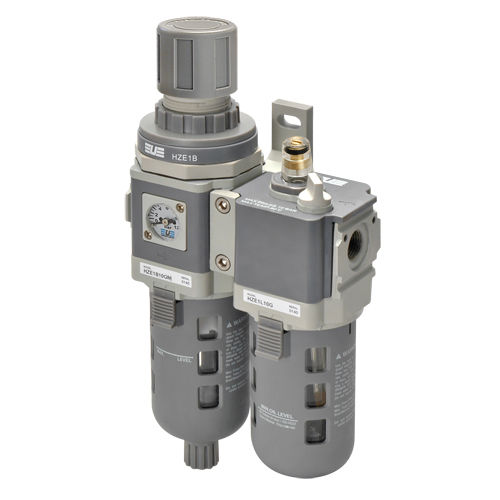

Vertical air treatment unit HZE-D seriescompact
Add to favorites
Compare this product
Characteristics
- Configuration
- vertical
- Other characteristics
- compact
- Air flow
600 l/min, 2,800 l/min, 4,300 l/min
(158.503 us gal/min, 739.682 us gal/min, 1,135.94 us gal/min)
Description
Air treatment units
New series available in 3 sizes -H2E0 Gl/4*(40 mm)
-HZE1 - G3/8'(63 mm)
-HZE2 Gl/2*(80 mm)
Standard configurations
-Filter
-Regulator
-Lubricator
-Filter regulator (FR)
-Filter regulator + Lubricator (FR+L)
-Filter + Regulator + Lubricator (F+R+L)
Integrated square pressure gauge standard supplied (where foreseen)
TECHNICAL CHARACTERISTICS
Ambient temperature5 -60 °C
Fluidcompressed air, with or without lubrication
Working pressure0-5-10 bar
Max pressure12 bar
Size0-1-2
CONSTRUCTIVE CHARACTERISTICS
Bodytecnopolymer with metal threaded elements (size 0)
die-cast aluminium (size 1 - 2)
Knobtecnopolymer
Ring nuttecnopolymer
Bowlpolycarbonate
Bowl guardtecnopolymer (size 1-2)
Filter elementsintetic fi bre
Sealsnitrile rubber
Springssteel
Diaphragmfabric reinforced rubber
