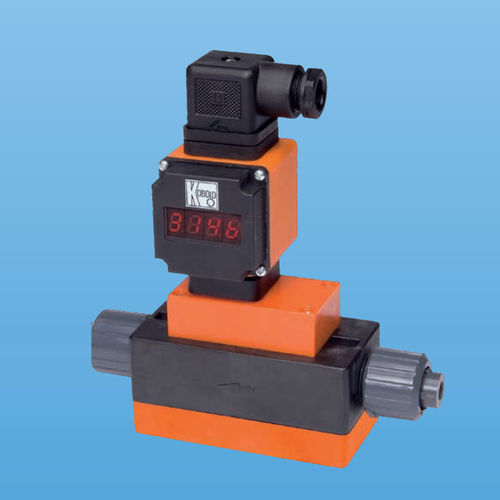

Magneto-inductive flow meter MIK seriesvolumefor chemicalsDN8 - 1/4"
Add to favorites
Compare this product
Characteristics
- Technology
- magneto-inductive
- Type
- volume
- Fluid
- for chemicals
- Pipe diameter
- DN8 - 1/4"
- Material
- stainless steel
- Communication
- 4-20 mA
- Protection level
- IP65
- Applications
- laboratory
- Other characteristics
- compact, electronic, low-pressure
- Volumetric flow rate
Min.: 9 us gal/min
(34.0687 l/min)Max.: 180 us gal/min
(681.3741 l/min)- Process temperature
Min.: -4 °F
(-20 °C)Max.: 140 °F
(60 °C)- Process pressure
145 psi
- Precision
2 %
- Repeatibility
1 %
Description
1/4" - 2" Compact Magneto-Inductive Flow Meter (MIK)
Max Temperature: 176 F
Connection: G 1/2 - G 2 3/4 Male with optional NPT, Socket and Hose Connections
Materials: PPS Body with Stainless Steel or Hastelloy® Electrodes; PVDF Body with Hastelloy® or Tantalum Electrodes
Electronic Packages: Frequency or Current Outputs, Adjustable Switches, and Integral Totalizers or Batch Controllers
Highlights:
No Moving Parts in the Flow Body
Low Pressure Loss
Universal Mounting
High Quality at a Low Price
