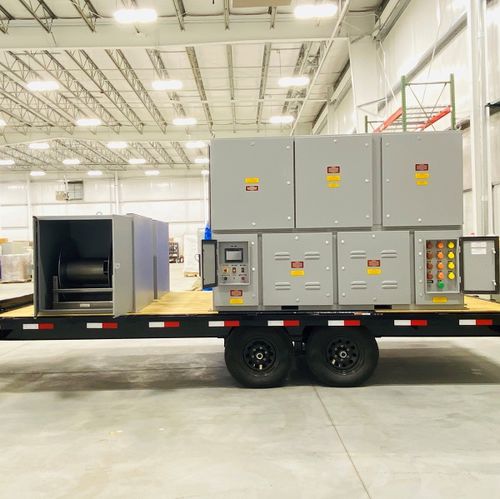

Resistive load bank ULB-R2000

mobiletestfor generators

The Model ULB-R2000 is a state-of-the-art, high capacity trailer-mounted resistive load bank system intended for testing and routine maintenance of stand-by generators, UPS, or other AC power sources. Designed for mobile outdoor use, the ULB-R2000 load bank features horizontal vertical hot-air discharge to keep the overall height to a minimum. This allows entry in parking garages and other areas with low height clearance. The load bank is digitally controlled via an on-board PLC with touchscreen display and includes standard digital metering with data acquisition and data logging. The ULB-2000 load bank features a modular design with common subassemblies which improves quality and shortens lead-times. For example, for 1000 KW testing, only one load module is needed. For 2000 KW testing, two modules are used in daisy-chain mode with a common digital controller. The load bank enclosure is rated NEMA-3R and is suitable for outdoor operation. The cabinet is constructed of heavy gauge steel with a durable polyester powder coat finish. The cabinet has hinged access doors with lockable latches. Cooling air is drawn in from the front end and the hot air exhaust is directed out the back end. Hinged solid intake and exhaust doors protect the load bank from road debris when the load bank is being transported. The load bank incoming power connections (from the generator or source under test) are made directly to industry standard, quick-connect Cam-Lok receptacles with no tools required.
