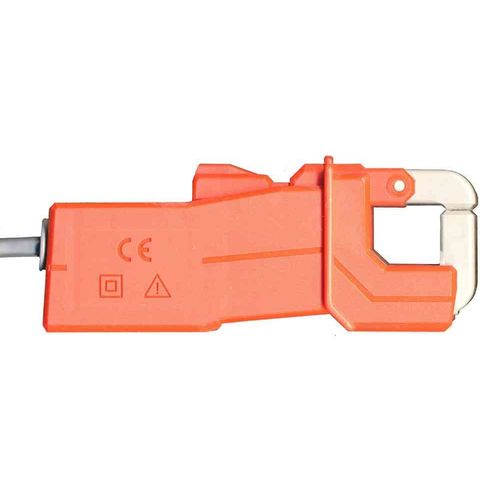

AC/DC current clamp M2.1C

portablemeasurement

Les Pinces Micros : The micro clamps cover measuring needs on small sized conductors up to 200A. Their thin jaws can enclose cables with a max diameter of 15mm which make them the ideal choice for measuring hard to reach conductors. This range exists for the measure of insulated conductors (M1, M2) as well as naked ones (M3 and M4 are 600V CAT III). The longer casing of the M2 and M4 allow space for a PCB, useful for some applications such as to improve the phase shift for power measurement or rectifying the signal for DC data loggers. M2.1C for AC/DC currents Hall Effect technologies for the measure of DC currents from 10A up to 300A Primary: from 1A to 300A output : from 1 to 3V Cable diameter: 15mm Power supply: 9Vdc to 18Vdc Starting at: 153 euros
