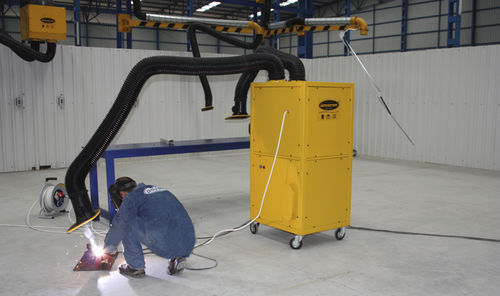

Mobile fume extractor

weldingelectrostatic filterwith extraction arm

Bigger particles are captured in a prefilter,than flow through in to the two stages main filter and purificated here by means of electrostatic charge and ionisation. With the airflow the remaining very small and breathable particles are carried to the ionisation section where they are charged positive electric. The collecting sheets in the main filter are negatively charged and separate the particles from the air with %98 efficiency.Exhausted air by acrobat arms is purificated with %98 efficiency and than reverse in to the area. One or two acrobat exhaust arm with 2 m, 3 m or 4 m length can be installed to the mobile units. Acrobat exhaust arms are constructed with self-carriable, 360° rotatable air-volume damper chimney-hood. Acrobat exhaust arms can be brought to any position and kept that position without needing any support. Carrier carcase is installed in a very flexible 150 mm dia. UAS FORTE Antistatic hose resistanced to temperature and abrasion.
