Transfer trolley

handlingprofile

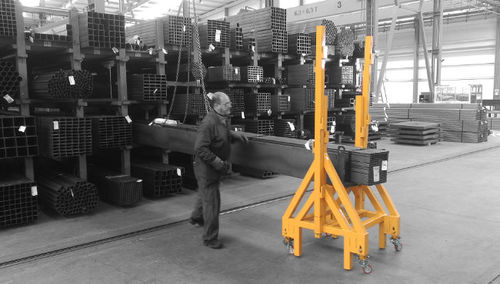

The external SUPPORT trolley The external support is a stand or support trolley so that a single operator can handle the material to introduce it and remove it from the corresponding storage location quickly and completely safely. It is placed in front of the selected column of storage locations, and has a crossbar that is placed at the same height as the chosen location. It moves with wheels, which are secured on the ground as soon as we put weight on it, for total safety and control. HOW DOES IT WORK Introduction of complete bundles With one-hooked crane bridge (with a double hook crane bridge the external support trolley is not necessary), we introduce the bundle in the selected storage location, between 50 cm and one meter inside the storage location. We place the external support on the other end of the bundle, and lower the bundle, so that it lies with total security in those 2 points. We replace the straps or chain of the bridge-crane to the front of the bundle and, when lifting, the external support is already released. We start moving the bundle inwards. Thanks to the sliding system, the bundle is introduced smoothly, effortlessly, with total safety (in the traditional cantilever system, lateral movement has a risk that with the UPMOVIOM system we eliminate completely) and without the material being dragged or damaged. Extraction of whole bundles Same operation, but in reverse. The material is taken with the bridge crane and lifting it slightly from the outer part, we begin to extract it, safely and gently. When approximately 1 meter remains inside the storage location, we rest the tip on the external support trolley.
