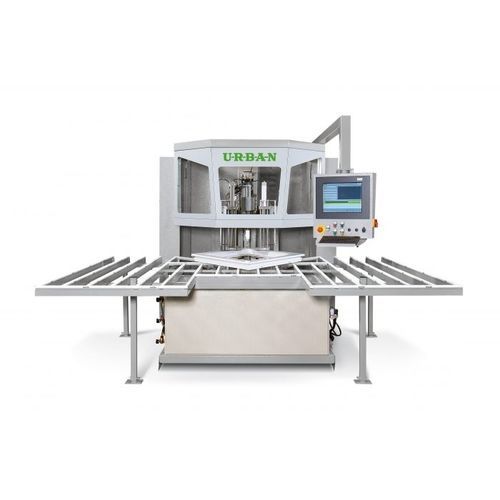

Automatic cleaning machine SV 530 B

industrialcornervertical

A very flexible Weld Seam Cleaning Machine for vinyl window profiles with a freely programmable CNC-axes-control. The SV 530-B Weld Seam Cleaning machine for vinyl window profiles convinces by an excellent price-performance-ratio and an optimal adaptation to your requirements. SV 530-B/2 – Corner cleaner with 2 axes – the Allrounder SV 530-B/4 – Corner cleaner with 4 axes for shortest cycle times The PC control – as a standard with an industrial PC basing on Windows – guarantees an operator-friendly handling of the cleaning machine as well as an excellent and uncomplicated integration into your production and easy connection with other machines and lines. The profile identification offers the possibility of a fully-automatic identification of your profiles and profile systems (optionally available). Additionally you can connect or disconnect different machining units. All in all, 17 tooling positions are available so that up to 26 individual machining units are possible with multiple tooling. Standard Tooling Includes: Two grooving or cutting knife units Two inside cleaning units Two drilling/milling units A disc cutting unit Optionally numerous special tools are at your disposal and offer a variety of machining possibilities: horizontal/vertical knife cutting unit as well as an inside cleaning unit for inclined inner corners and radii (further machining units on demand). You also can retrofit your SV 530-B with an automatic turning station WT 530-B. By the fully automatic turning and feeding of the window frames you save time and increase your productivity.
