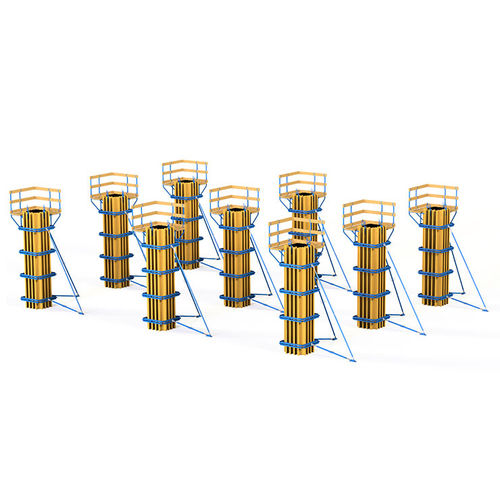

Column formwork system Woodset Wooden

steel

Woodset Wooden Girdered Column Formwork System WOODSET® consists of 4 main components, namely plywood, wooden girder, adjustable column belt and adjustable corner bracket. WOODSET® is a flexible system which can be adapted for different projects and strengths. All dimensions of square and rectangular columns from 20/20 to 100/100 can be obtained with 5 cm increments through two types of adjustable column belts ( 115 cm and 145 cm ) and bracket components. Column formworks in various strengths and dimensions can be obtained by tailoring the wooden girder and steel belt components. Formworks which are prepared at the beginning of a project are carried easily by crane without the need to dismantle until the end of project and therefore savings can be made on labor and time. Strength of column formworks that are 10 m high maximum is 90 kN/m2. System is designed by making static calculations for other dimensions. Other than the standard WOODSET®panel heights, it is possible to finish plywood installation at any low height and to create higher panels, using interim dimensions or H20-H20 connection components. Belts are produced automatically in gas robots.
