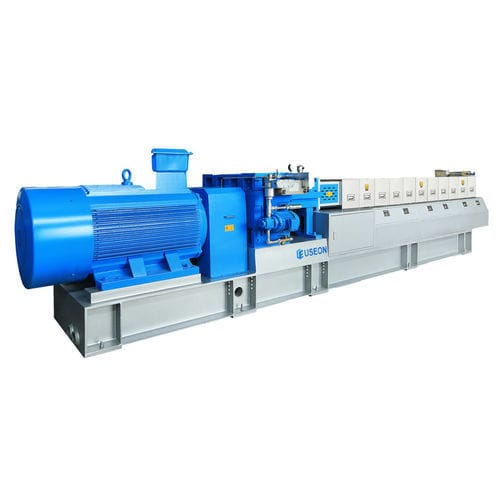

Compounding extruder SAT-T seriesfor TPUfor HFFRtriple screw
Add to favorites
Compare this product
Characteristics
- Applications
- compounding
- Treated material
- for TPU, for HFFR
- Number of screws
- triple screw
- Other characteristics
- for masterbatch
- Output
Max.: 1,200 kg/h
(2,645.5471 lb/h)Min.: 300 kg/h
(661.3868 lb/h)- Screw diameter
51.4 mm, 62.4 mm, 71 mm
(2 in, 2.5 in, 2.8 in)- Maximum speed
600 rpm
(3,770 rad.min-1)- Power
110 kW, 160 kW, 250 kW
(149.56 hp, 217.54 hp, 339.91 hp)
Description
Parallel Triple Screw Extruder is uniquely designed and adapted with better dispersion and higher output. The free volume of screws increases by 40%.
This extruder is equipped with the following characteristics:
1) Super dispersion & distribution
2) Narrow RTD features
3) Perfect Self-cleaning
4) Higher torque and throughput
Typical Processing Applications
POY/BCF mono Masterbatch (MB) (by only one time compounding)
TPU reactive extrusion
Super dispersion functional Masterbatch (MB)
Engineering plastic compounding
Filler Masterbatch (MB) compounding
HFFR cable compounding
