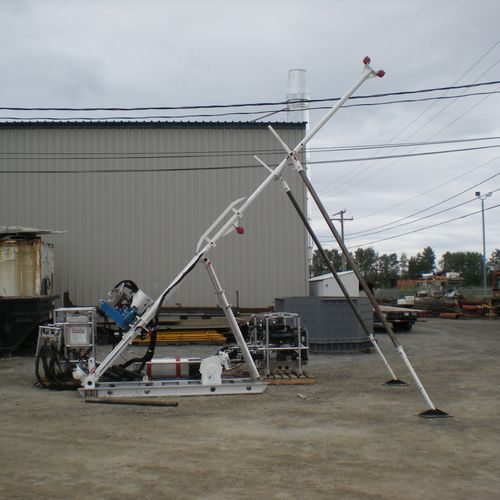

Multifunction drilling rig Mancore 600

portablerotaryhydraulic

The Mancore 600 is a modular portable drill rig that can be taken apart for easy transportation to remote areas by machinery or helicopter. The heaviest part weights 272 Kg (600 Lbs) when assembled, but can be broken down quickly into portable pieces. The Mancore 600 is the lightest drill rig in his category. In addition, his modular design allows you to set the power units and hydraulic tank within a 6m radius (20 ft), with no need for a flat area, and perform your drilling operations based on the topography. Key specifications Depth capacity Max BWL 780M (2559 ft) Max NWL 600M (1968 ft) Max HWL 400M (1312 ft) Total weight 8905 kg (19634 lbs) Pump FMC Bean L1122B Engine Kubota Turbo V2403-M-T-E3B Speed 2700 RPM Drill head Disconnecting torque 1632 N-M (1204 LB-F) @ 404 RPM Drilling torque 474 N-M (350 LB-F) @1200 RPM D rilling torque 626 N-M (462 LB-F) @ 900 RPM
