Fuel tube Hycolin™
for oilsteelhigh-pressure

fuel tube
fuel tube
fuel tube
Add to favorites
Compare this product


Characteristics

Use
for fuel, for oil
Material
steel
Applications
for automotive applications, high-pressure
Other characteristics
welded
Inner diameter

Min.: 4.76 mm
(0.187 in)

Max.: 18 mm
(0.709 in)

Outer diameter

Min.: 4.76 mm
(0.187 in)

Max.: 18 mm
(0.709 in)

Pressure

9.8 MPa, 14.7 MPa, 19.6 MPa, 24.5 MPa

Description

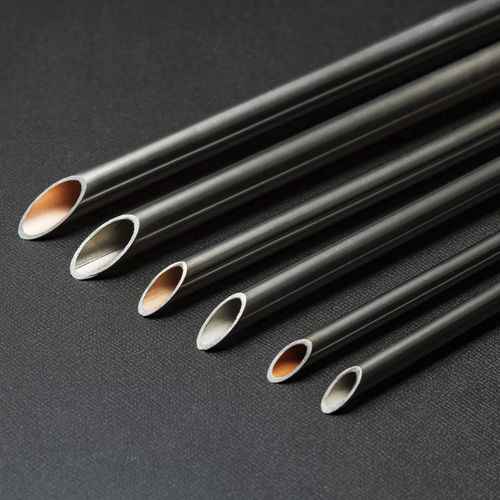

Hycolin™ is an electric resistance welded steel tube specially made, which is manufactured from electrolytic metal-coated steel strip (one surface). The strip is wound into tubular and then welded together on both edges to form continuous strip. This tube possesses higher withstanding pressure and excellent mechanical properties. And further more, is also equipped with the superior reliability on bending process and end terminal forming process. The tube is applied for several purposes such as fuel pipes and oil pipes on vehicles, tubes for heat exchanger, and pipes for hydraulic piping.
