Steel tube brakefor automotive applicationsdouble-walled
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Applications
- for automotive applications, brake
- Other characteristics
- double-walled
- Inner diameter
4 mm, 4.76 mm, 6.35 mm, 8 mm, 10 mm
(0.157 in, 0.187 in, 0.25 in, 0.315 in, 0.394 in)- Outer diameter
4 mm, 4.76 mm, 6.35 mm, 8 mm, 10 mm
(0.157 in, 0.187 in, 0.25 in, 0.315 in, 0.394 in)- Pressure
Min.: 34.3 MPa
Max.: 108 MPa
Description

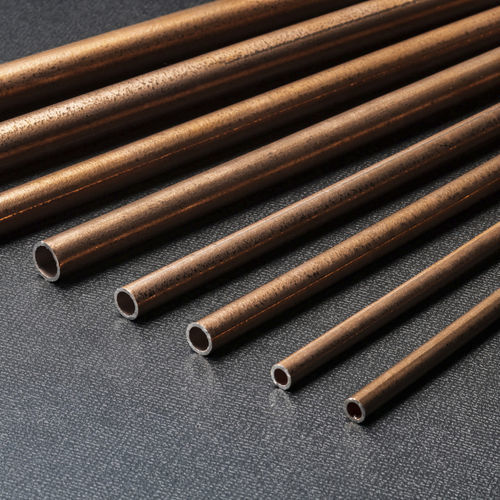

Double Walled Steel Tubing is a steel tube for pressure piping, which is manufactured from electrolytic copper coated steel strip (both surfaces). The strip is wound into continuous tubular with double-layered wall and then copper brazed in a special furnace using the coated copper as filler metal. Double Walled Steel tube possesses both higher pressure fatigue strength and higher vibration fatigue strength higher withstanding pressure and higher vibration fatigue strength. Furthermore, the tube is also equipped with superior properties such as solderability, brazeability, bendability, and workability in end terminal preparation. As a pressure tubing material with extensive reliability and good processing characteristics, this tube is used for several purposes, such as brake tubing, power steering on vehicles, and many more.
