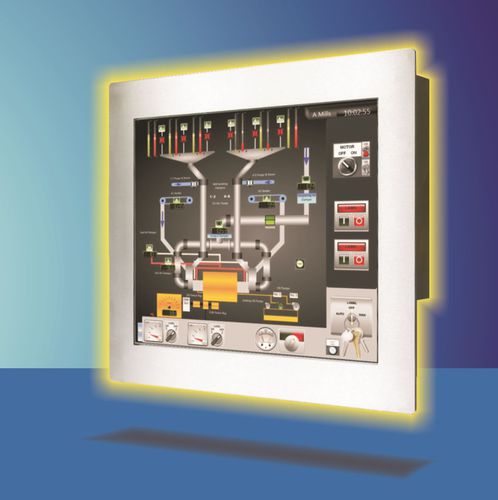

LCD panel PC TFT LCDwith touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, TFT LCD, with touch screen, LED backlight, widescreen
- Display size
- 32"
- Resolution
- 1024 x 768, 1280 x 1024, 1920 x 1080, 800 x 600, 1366 x 768, 1200 x 1080, 1920 x 1200, 1680 x 1050, SXGA+
- Processor
- Intel® Atom E3845, Intel® Core i5, Intel® Core i7, Intel® Core i3, Intel® Core i series, 6th generation Intel® Core™, Intel Core i7-6500U, Intel® Core, Intel® Core™ i3-6100TE, Intel® Core™ i5-6300U
- Operating system
- Linux, Windows 10, Windows 7
- Construction
- metal chassis, fanless, slim design
- Mounting
- kiosk
- Applications
- medical, POS, for the food industry, for marine applications, for data acquisition systems, point-of-care, data acquisition, industrial
- Protection level
- IP65, full IP65, rugged, robust, NEMA 4
- Other characteristics
- all-in-one, SCADA, high-performance, wide temperature range, multimedia, fullscreen, outdoor
Description
* Rugged stainless steel case with 3mm thick front plate, completely sealed
* For front mounting
* Additional variants for mounting in 19 "racks
* Protection class IP 65 at front
* Solid attachment over welded bolts
* Various display diagonals up to 32"
* In 4:3, 16:9 or 16:10 format
* With resistive or capacitive touches
* Version as panel PC or monitor
* Equipped with low-power CPU board, thus completely fanless
* Powder coating possible in your desired/house color
* Execution as 'no label' or brand label version
* Power supply from 12 VDC to 230 VAC
* On request with KVM extender, emergency stop switch or your own individual accessories
