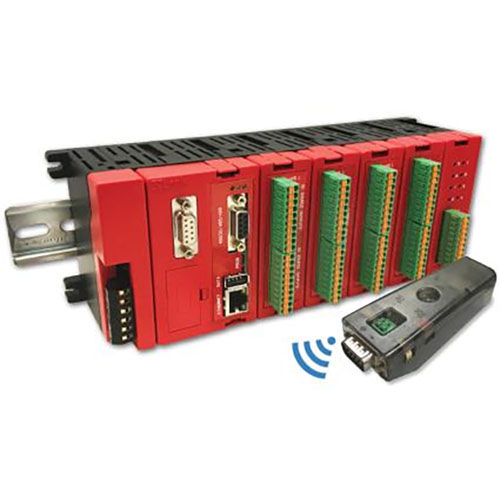

Compact PLC EZRack

DIN railwith expandable I/O carddigital input

Farewell to PLC's! The EZRack was primarily designed as an edge gateway for entry into Industry 4.0 applications. Hence, this system enables you to implement e.g. condition-based maintenance concepts quickly and easily. At the same time, the EZRack is a fully modular PLC system for industrial use with features that are otherwise only found in premium-class controllers. In contrast, the price is at the level of compact controllers. And: The full version of the programming software is completely free! EZRack is available in versions with 3, 5 or 7 slots including power supply module. The CPU is equipped with 2 serial ports, Ethernet port and USB port as well as Micro USB port. To complete the system, it can be equipped with several digital and analog I/O modules plus various special modules (e.g. high speed counters, thermocouples, etc.). And these are the specs: - 2,4 ms Scantime Per 1k Instructions - 1 MB User Retentive Memory, 500K Instruction Words, 16K Registers - Hot-Swappable I/O Modules - Auto-Tuned PID Control (8 Loops) - 32 Bit Floating Point Arithmetic The Software offers: - IIoT/I4.0 Ready CPU With Built-in MQTT Protocol - Auto Tag Name Addressing / Programming - Programming in Simple Ladder Logic - Rich Instruction Sets - Advanced Function Blocks - USB Data Logging up to 64 GB - Offline Programme Simulator - Powerful Debugging Tools - High Speed Counter, Drum Sequencer, Timer
