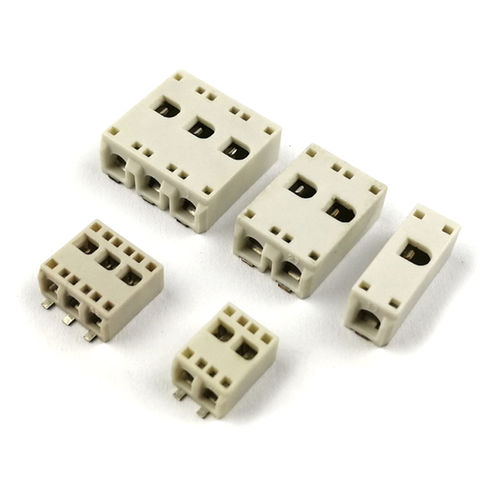

SMT terminal block SMT0.5/2.4
push-inplasticfeed-through

SMT terminal block - SMT0.5/2.4 - Utility Electrical Co., Ltd. - push-in / plastic / feed-through
SMT terminal block - SMT0.5/2.4 - Utility Electrical Co., Ltd. - push-in / plastic / feed-through
SMT terminal block - SMT0.5/2.4 - Utility Electrical Co., Ltd. - push-in / plastic / feed-through - image - 2
SMT terminal block - SMT0.5/2.4 - Utility Electrical Co., Ltd. - push-in / plastic / feed-through - image - 3
SMT terminal block - SMT0.5/2.4 - Utility Electrical Co., Ltd. - push-in / plastic / feed-through - image - 4
Add to favorites
Compare this product


Characteristics

Mounting
SMT
Connection
push-in
Other characteristics
plastic, feed-through
Cross-section

Min.: 0.1 mm²
(0 in²)

Max.: 0.5 mm²
(0 in²)

Current

Min.: 0 A

Max.: 4 A

4 A

Nominal voltage

Min.: 0 V

Max.: 300 V

300 V

Description

materals: Housing:High temperature resin Contact:Copper alloy Plating specification: PRE-TIN over nickel underplate Mechanical performance: Pullout force:1.5KGF MIN Insertion Force:1.0KGF MAX Durability: 5 Cycles Electrical performance: Rated current:4A AC.DC Rated vottage:300V AC.DC Contact resistance:20mQ MAX Withstand wottage.AC 1600V Insulation resistance:1000mQ MIN Operating temperature:-30 C-105 C
