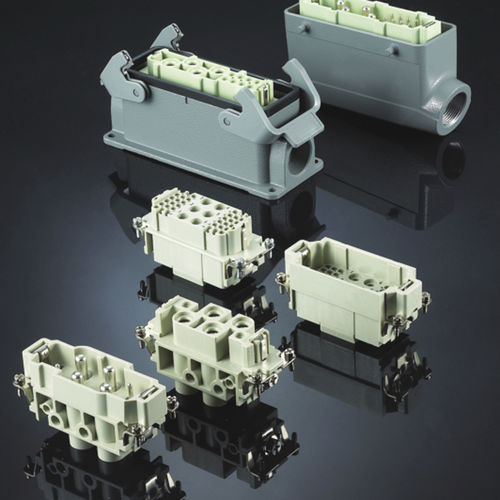

Data connector HK seriesultra-rugged
Add to favorites
Compare this product
Characteristics
- Type
- data
- Other characteristics
- ultra-rugged
- Primary current
Min.: 10 A
Max.: 80 A
- Voltage
400 V
Description
HK Combination Series
This Series contains Power area and Signal area.
Number of contacts: 4+2+PE or 4+8+PE
Power area:
Rated current/Voltage: 80A/400V
Number of contact: 4p
Cable range: 1.5-16mm2(AWG16-6)
Signal area:
Rated Current/Voltage: 16A/400V
Number of contact 2/8p
Cable range: 0.5-2.5mm2(AWG20-14)
Housing material: Polycarbonate
Contact material: Copper Alloy plated with hard silver
Working temperatures: -40 to +125℃
