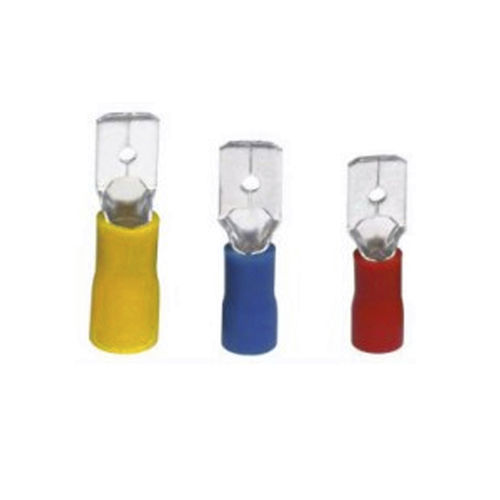

Male solderless terminal MDD seriescompressionflatnylon-insulated
Add to favorites
Compare this product
Characteristics
- Connection type
- male, compression
- Configuration
- flat
- Insulation
- nylon-insulated
- Material
- copper
Description
MDD Series--Male Pre-insulating Soldless Cable lug
1. 0.5~1.5mm2/AWG22~16, Imax=10A, Red color, Copper+Nylon
2. 1.5~2.5mm2/AWG16~14, Imax=15A, Blue color, Copper+Nylon
3. 4~6mm2 /AWG12~20, Imax=24A, Yellow color, Copper+Nylon
Female outlet: FDD Series
