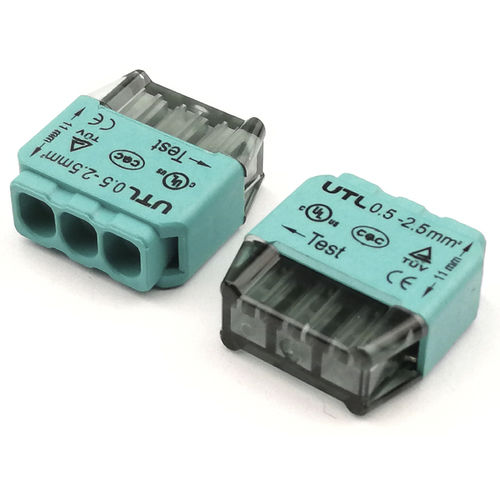

Push-in terminal block UC41-03-GN
screwlessspringquick-connect

Push-in terminal block - UC41-03-GN - Utility Electrical Co., Ltd. - screwless / spring / quick-connect
Push-in terminal block - UC41-03-GN - Utility Electrical Co., Ltd. - screwless / spring / quick-connect
Push-in terminal block - UC41-03-GN - Utility Electrical Co., Ltd. - screwless / spring / quick-connect - image - 2
Push-in terminal block - UC41-03-GN - Utility Electrical Co., Ltd. - screwless / spring / quick-connect - image - 3
Push-in terminal block - UC41-03-GN - Utility Electrical Co., Ltd. - screwless / spring / quick-connect - image - 4
Push-in terminal block - UC41-03-GN - Utility Electrical Co., Ltd. - screwless / spring / quick-connect - image - 5
Add to favorites
Compare this product


Characteristics

Connection
push-in, screwless, spring, quick-connect, clip-type
Other characteristics
plastic, single-pole, insulated
Cross-section

Max.: 2.5 mm²
(0 in²)

Min.: 0.5 mm²
(0 in²)

Current

24 A

Nominal voltage

300 V

Description

UC-41/42 Series provides quick electrical connection for solid conductors from 0.5~2.5mm², nominal current up to 24A/300V(IEC Standard). The advantages of UC 41/42 Series Connectors 1. Anti-creeping 2. Anti-flaming & high-temperature resistance material 3. Safer & Easier install and operate 4. Avoid any safety concerns Connection capacity: IEC 0.5~2.mm2 (AWG 18~12) Stripping length: 10~12mm Number of Positions: 2P/3P/5P Current/Voltage: IEC 24A/300V Conductor: Copper plated with Tin Spring: SUS301 Housing: PC+ PA66 (UL94 V0) Certification: UL/CUL, CE, TUV
