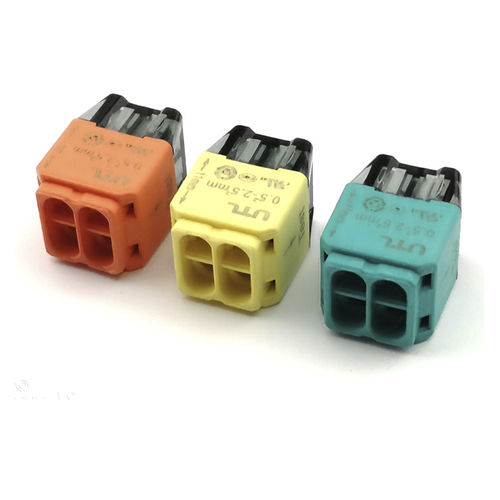

Push-in terminal block UC42-04-GNscrewlessspringquick-connect
Add to favorites
Compare this product
Characteristics
- Connection
- push-in, screwless, spring, quick-connect
- Other characteristics
- plastic, single-pole, insulated
- Cross-section
Max.: 2.5 mm²
(0 in²)Min.: 0.5 mm²
(0 in²)- Current
25 A
- Nominal voltage
300 V
Description
UC-41/42 Series provides quick electrical connection for solid conductors from 0.5~2.5mm², nominal current up to 24A/300V(IEC Standard).
The advantages of UC 41/42 Series Connectors
1. Anti-creeping
2. Anti-flaming & high-temperature resistance material
3. Safer & Easier install and operate
4. Avoid any safety concerns
Connection capacity: IEC 0.5~2.mm2 (AWG 18~12)
Stripping length: 10~12mm
Number of Positions: 2P/3P/5P
Current/Voltage: IEC 24A/300V
Conductor: Copper plated with Tin
Spring: SUS301
Housing: PC+ PA66 (UL94 V0)
Certification: UL/CUL, CE, TUV
