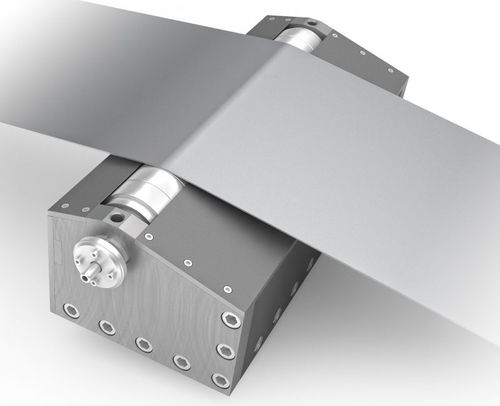

Flatness measurement system STM series
strip

flatness measurement system
flatness measurement system
flatness measurement system
flatness measurement system
flatness measurement system
Add to favorites
Compare this product


Characteristics

Measured physical value
flatness
Measured material
strip

Description

Sectional strip tension meter is designed for evaluating of metal strip flatness in cold rolling mills. The principle of the flatness evaluation is based on measuring of pressure forces of a metal strip in the multiple zones of the measuring roll deflector. A visual unit displays measured tensions across the strip in real time on monitor in the form of a column and flat graphical mapping. Advantages measuring the spread of the tensile force from zero speed of the strip measuring the total tensile force of the strip affordably priced measuring equipment simple construction for maintenance and calibration Features custom built measuring deflector with sensitive measuring zones industrial PC with visualisation and archiving software data output: PROFIBUS or per customer requirement OEM version without Industrial PC is possible
