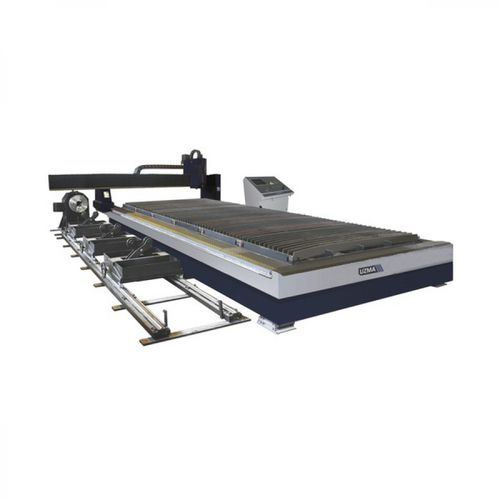

Laser cutting machine CPL Line

plasmafor metalsheet metal

Uzma CPL Series Plasma Cutting Machines has a double side gear drive and it’s designed with strong steel construction for positioning capability at high speeds. You will have a precise cutting ability at X-Y axis with linear guide ways and 30m/min speed. It has ability to mantain constant at the same height and the quality, with the Arc-THC control sensor. Standard Accessories "• Hyperther Edge Pro CNC Control Unit • Windows based CNC control unit. • Plasma Power Source Hypertherm • Manual Gas Consol- Hypertherm • Cutting plate alignment function with Laser • Manual or Automatic cut selection • Torch positioning with laser light • Automatic ignition torch system • Automatic Torch Hight Control (Uzma Sensor THC) • Torch collision protection. • +/- 45° manual bevel cutting • Dual side Helical rack, pinion and AC Servo motors on X axis which gives smooth and fast motion • Syncronised drive gives smooth and without vibration motion. " "• Brushless AC servo motors on all axis • High precious positioning possibility with linear sledge system on all axis. • Platform type on bridge side or Portable CNC control panel • CNC control outputs/inputs for vacum table & filtering unit • High vacuming capability with lower energy consaption • Independent cutting table system • Multi head Plazma and multi head oxy fuel cutting possibilities. • +/- 0,02 mm positioning accuracy. • +/- 30m/min positioning speed " Gear Box & Motors "• MITSUBBISHIi or SIEMENS AC Servo Motors and Drivers • Planet Type gear box : EISELE (Germany) or LIMING (Taiwan) • Resolver controlled motors " Main Features "• Visual opportunity to cut comfortable with 15” TFT LCD Touch Screen Monitor
