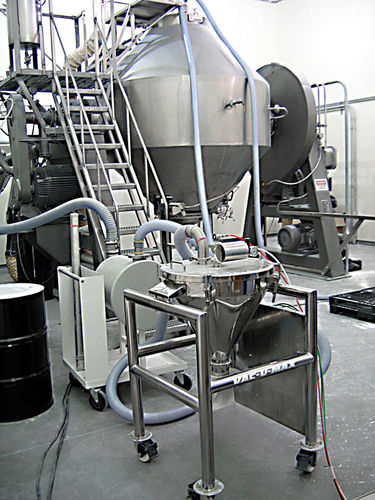

Aspiration pneumatic conveying system

handling

Vacuum Conveying System: Direct Charge Blender Loading Direct Charge Loading Systems for Vacuum-Tight Blenders and Mixers The principle of vacuum transfer has been proven to be a "better way" to move many types of material and a giant step over manual handling. The technology exists for moving virtually any material that can be pulled through a hose or tube. A unique adaptation of vacuum transfer is "direct charge blender loading," when a vacuum tight process vessel becomes the primary vacuum receiver for material being charged into it. VAC-U-MAX has pioneered this technique and now offers new, exclusive packaged conveying systems designed specifically for the direct charge loading of blenders, mixers, reactors or any vessel capable of withstanding a vacuum. With your blender or mixer as the primary receiver, VAC-U-MAX provides the rest of the system: power source, filters, controls, adapters and most important of all, the know-how. Model 109020 Cover Adapter with Built-in Multi-Filter Eliminates carryover of product from blender, insuring batch integrity. For use with blenders having a minimum 10 cu. ft. capacity. Includes 19" diameter cover, clamps and three, 6" diameter X 16" long filter bags in various material types. Standard feature includes quick disassembly for easy cleanout. Camlock-type fittings and dust caps are optional. Material outlet available in 2" to 3" diameter range. Cover adapter must be removed before blending and replaced with standard cover.
