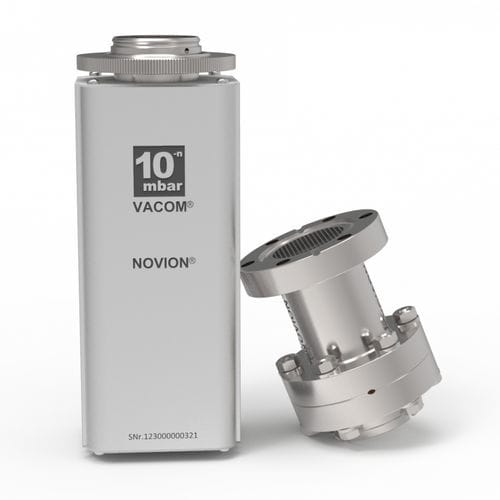

Vacuum sensor NOVION-C-BA35-CF40

Category - "3 in 1" - wide range vacuum sensor Accuracy 2 (Pressure Range) - 1E-7 - 1E-5 mbar Item description - "3 in 1" wide range vacuum sensor total pressure measurement range 1E-9...1E5 Pa | 1E-11...1000 mbar | 7.5E-12...750 Torr with integrated residual gas analyzer useable as helium leak detektor incl. Controller, power supply (power port, 90...264 V AC) with data cable to connect with a PC (D-SUB9/USB) software available for free on VACOM website mounting flange DN40CF (2.75" OD) operating temperature 10...45°C bakeout temperature (without controller) 200°C Accuracy 1 - 25 % Accuracy 2 - 15 % Accuracy 1 (Pressure Range) - 1E-3 - 10 mbar Bakeout temperature - 200 °C Article no. - 363842 Connection type - CF Nominal diameter DN - 40 Max. operating temperature - 45 °C Length - 73 mm Length 2 - 100 mm Length 3 - 160 mm Purity class - PCS Pressure range - 1E-11 - 1000 mbar
