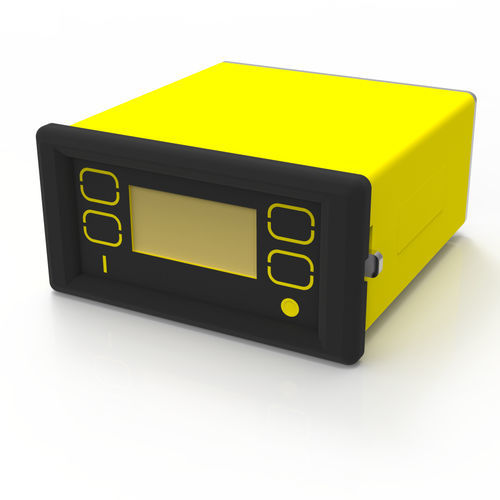

Analog vacuum gauge controller PIRANI-C

convection

Category - Controller Pirani-C for convection pirani gauge Item description - Controller PIRANI-C for convection pirani gauge PIRANI-000-S-0-X manual power-up - measurement range 1333 - 0.0001 mbar - 4 digit OLED-display - display unit: Pa, mbar, Torr - analog output: programmable * non linear 0.375 - 5.659 VDC * linear 0 - 10 VDC (= 0 - 1 Torr) * log-linear 1 - 8 VDC, 1 V / decade - RS485- / RS232-Interface - two single-pole double-throw relays - housing 1/8" DIN panel-mount-enclosure - input power 12 - 30 VDC - power supply: SUPPLY-PIRANI-C (not included) Article no. - 409289 Length - 96 mm Length 2 - 96 mm Length 3 - 50 mm Purity class - PCS Pressure range - 1.33E-4 - 1333 mbar Relais count - 2 Power supply min [VDC] - 12 Power supply max [VDC] - 30
