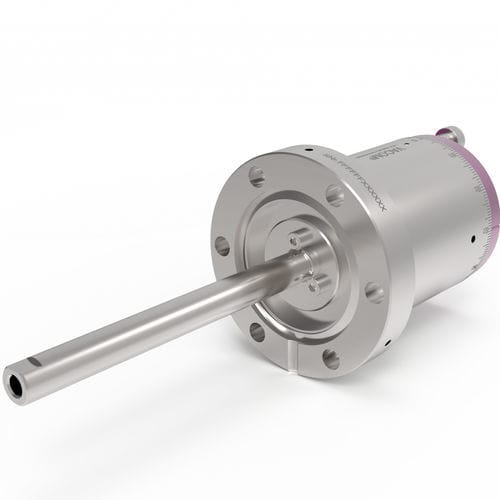

Vacuum rotary union MTVC-R360-MC-CF40-EXTENDED

multi-passagestainless steelflange

Category - Rotating Union DN40-extended Item description - MeTraVaC® - Mechanical Transfer component made by VACOM rotary feedthrough with magnetic coupling free 360deg rotation mounting flange CF40 (2.75" OD CF) according to ISO 3669 atmosphere side turning handle magnetically shielded atmosphere side turning handle with 2° angle scale and locking screw vacuum side shaft: Ø 10 mm, length 100 mm, flattening 9mm transferable torque 2.5 Nm maximum no load spin speed 1000 rpm maximum shaft axial load 20 N bakeable up to 250°C cleaned acc. VACOM Purity Class 2, functional down to XHV Bakeout temperature - 250 °C Article no. - 368129 Max. Rotations without Load - 1000 Mounting flange material - Stainless Steel (304L) Max shaft axial load - 20 N Mounting flange - CF40 Purity class - PCS Transferable torque - 2,5 Nm Operating pressure range - down to XHV
