Single-girder vacuum lifting device U125-6Q
for sheet metalfor flat partsfor plates

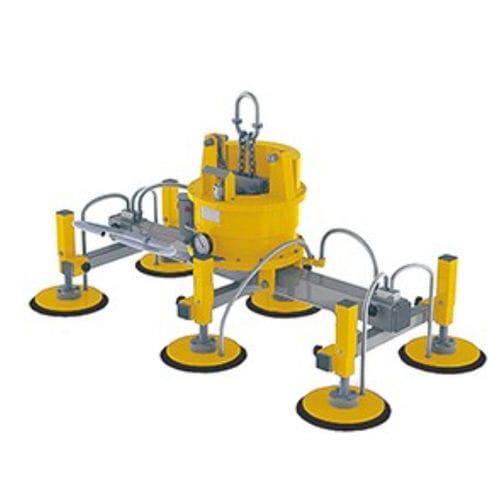

Single-girder vacuum lifting device - U125-6Q - VACU-LIFT Transportsysteme GmbH - for sheet metal / for flat parts / for plates
Single-girder vacuum lifting device - U125-6Q - VACU-LIFT Transportsysteme GmbH - for sheet metal / for flat parts / for plates
Add to favorites
Compare this product


Characteristics

Model
single-girder
Product applications
for sheet metal, for flat parts, for plates
Type
horizontal
Options
automatic
Carrying capacity

Max.: 1,250 kg
(2,756 lb)

Min.: 25 kg
(55 lb)

Number of cups

6 unit

Overall length

1,900 mm
(74.8 in)

Total width

1,000 mm
(39.37 in)

Weight

260 kg
(573.2 lb)

Description

Large format 1 millimeter material thickness - with full variability. Like all energy self-sufficient Green Line systems, the U125-6 Q can be perfectly tailored to the individual requirements in use. Like all of them Green Line models, the U125 series is also characterized by simple, intuitive operation. For example, the crane control or the automatic switching of the vacuum when putting on and taking off guarantee smooth transport. The high-quality suction pads and sealing rings ensure that even the most sensitive surfaces are not damaged by scratches - whether in the hall or outdoors. Standards of all Green Line VacuLifter® Independent of energy • Standard and individual solutions • 30 year guarantee on spare parts availability • Made in Germany The VacuLifter® U125-6Q is available with a wide range of optional extensions such as a transport trolley, water separator, Ergo-Flex handle, suction cup shut-off via a manual valve, a forklift traverse and foldable parking supports, a folding traverse or a weld-on hook. & Nbsp; Change set The interchangeable set enables different suction pads and compact truss units to be connected via a pin connector and a vacuum quick-release coupling. The suction pad can be replaced quickly and easily without having to separate the VacuLifter from the crane hook. The exchange set is available for loads up to 300 kg. For higher load capacities only available on request. Transport trolley The rollable transport trolley ensures maximum mobility. The free-standing loading area, where the suction pads float freely during transport, protect the suction pad seals (sealing rings).
