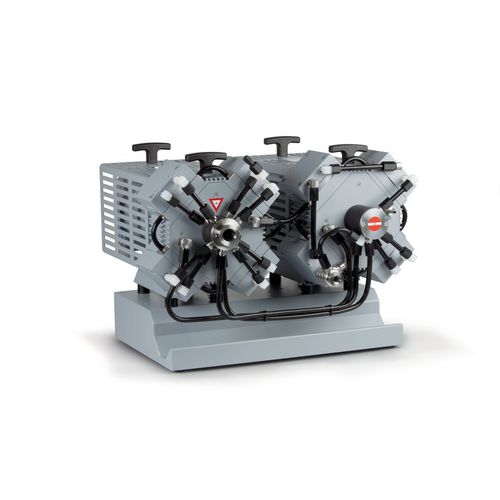

Diaphragm vacuum pump MV 10C EX VARIO
oil-free230VACfour-stage

Diaphragm vacuum pump - MV 10C EX VARIO - VACUUBRAND - oil-free / 230VAC / four-stage
Diaphragm vacuum pump - MV 10C EX VARIO - VACUUBRAND - oil-free / 230VAC / four-stage
Diaphragm vacuum pump - MV 10C EX VARIO - VACUUBRAND - oil-free / 230VAC / four-stage - image - 2
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC
Number of stages
four-stage
Applications
for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
Other characteristics
chemical-resistant, ATEX, low energy consumption, variable-speed
Ultimate vacuum

2 mbar, 10 mbar
(0.03 psi, 0.15 psi)

Flow rate

8.1 m³/h
(286.05 ft³/h)

Power

0.5 kW
(0.68 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

560 mm
(22 in)

Width

457 mm
(17.99 in)

Height

410 mm
(16.14 in)

Noise level

42 dB

Weight

61 kg
(134.48 lb)

Description

With the new ATEX VARIO® chemistry diaphragm pumps and vacuum systems, the vacuum can be precisely controlled by the motor speed. The VARIO® pump is driven by an additional control signal line. The optional vacuum controller CVC 3000 with system accessories (I/O-Module, supply / isolation amplifier) and ATEX vacuum sensor enable fully automatic evaporations without the need for parameter settings or user programming. With the adaptive control it finds the boiling pressure independently and adjusts the vacuum continuously and optimally according to the vapor pressure. The vacuum controller and system accessories are installed in a non-hazardous area. Performance features full advantage of ATEX chemistry diaphragm pumps VARIO®: short process times due to hysteresis-free VARIO® vacuum control VARIO®: VARIO® pump operates on demand only as fast as necessary – minimal power consumption, extended maintenance intervals, silent operation VARIO®: Vacuum controller VACUU·SELECT (optional) for precise vacuum control and fully automatic processes ATEX vacuum sensor and Connection Box 100 for easy installation – from one source
