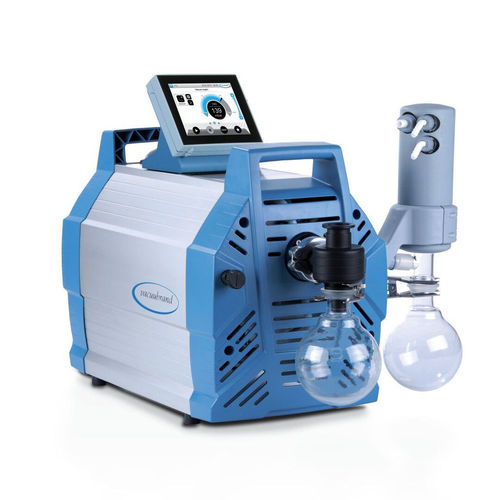

Diaphragm vacuum pump PC 3016 NT VARIO select
dry230VACsingle-stage

Diaphragm vacuum pump - PC 3016 NT VARIO select - VACUUBRAND - dry / 230VAC / single-stage
Diaphragm vacuum pump - PC 3016 NT VARIO select - VACUUBRAND - dry / 230VAC / single-stage
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
dry
Supply voltage
230VAC
Number of stages
single-stage
Applications
for laboratories, for the chemical industry, chemical process
Other characteristics
chemical-resistant, low energy consumption
Ultimate vacuum

70 mbar, 100 mbar
(1.02 psi, 1.45 psi)

Flow rate

19.3 m³/h
(681.57 ft³/h)

Power

530 W
(0.72 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

616 mm
(24 in)

Width

387 mm
(15.24 in)

Height

450 mm
(17.72 in)

Noise level

47 dB

Weight

29.7 kg
(65.48 lb)

Description

These powerful pumps feature exceptionally high pumping speed. The PC 3016 VARIO select pumping unit is a proven solution for evaporations with large amounts of low boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process as necessary. With VARIO control, the pump runs only as fast as necessary. This extends the maintenance intervals and makes the pumping unit quiet. The inlet separator, made of glass with protective coating, prevents particles and liquid droplets from entering the pump. The exhaust vapor condenser provides nearly 100% recovery of solvents for economical recycling and environmental protection. Performance features VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory automatic boiling point detection and adjustment of the vacuum for short process times suitable for evaporation of large quantities of low-boiling solvents extraordinary diaphragm life for minimum operational and servicing costs excellent environmental compatibility through low energy consumption and efficient solvent recovery
