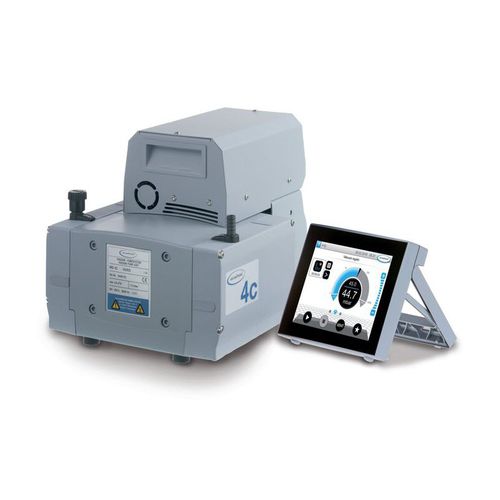

Diaphragm vacuum pump MD 4C VARIO select
dry230VACthree-stage

Diaphragm vacuum pump - MD 4C VARIO select - VACUUBRAND - dry / 230VAC / three-stage
Diaphragm vacuum pump - MD 4C VARIO select - VACUUBRAND - dry / 230VAC / three-stage
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
dry
Supply voltage
230VAC
Number of stages
three-stage
Applications
for laboratories, for gas, chemical process
Other characteristics
chemical-resistant
Ultimate vacuum

1.5 mbar, 3 mbar
(0.02 psi, 0.04 psi)

Flow rate

4.6 m³/h
(162.45 ft³/h)

Power

0.53 kW
(0.72 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

325 mm
(13 in)

Width

243 mm
(9.57 in)

Height

245 mm
(9.65 in)

Noise level

43 dB

Weight

16.8 kg
(37.04 lb)

Description

The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process as necessary. VARIO's on-demand motor speed control results in whisper-quiet operation and unparalleled length of service intervals for wear parts.Typical applications are all evaporation processes. They can be run fully automatically and with shorter process times and extra sensitivity even for challenging mixtures at the same time. The VARIO® control ensures high process reliability through prevention of boiling retardation or foaming. It detects boiling pressures automatically and self-adapts to changing process parameters at any time. This all without any need of parameter input or the use of a solvent library. Also in many other applications and in laboratory vacuum networks the VARIO® control brings significant advantages as it provides always the appropriate pumping speed. Performance features VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory automatic boiling point detection and adjustment of the vacuum for short process times extraordinary diaphragm life for minimum operational and servicing costs meets high vacuum requirements for most high boiling solvents
