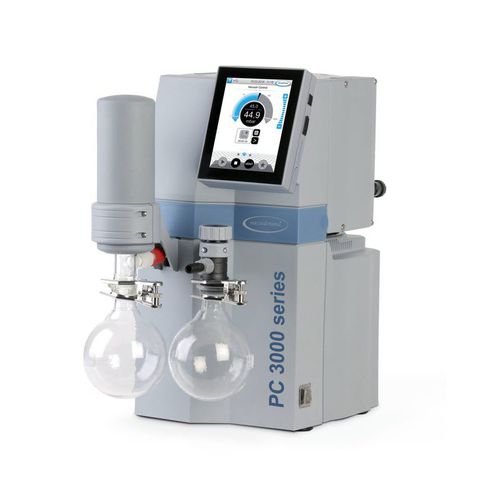

Diaphragm vacuum pump PC 3004 VARIO select
dry220VAC230VAC

Diaphragm vacuum pump - PC 3004 VARIO select - VACUUBRAND - dry / 220VAC / 230VAC
Diaphragm vacuum pump - PC 3004 VARIO select - VACUUBRAND - dry / 220VAC / 230VAC
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
dry
Supply voltage
230VAC, 220VAC
Number of stages
three-stage
Applications
for laboratories, chemical process
Other characteristics
chemical-resistant
Ultimate vacuum

1.5 mbar, 3 mbar
(0.02 psi, 0.04 psi)

Flow rate

4.6 m³/h
(162.45 ft³/h)

Power

0.53 kW
(0.72 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

419 mm
(16 in)

Width

243 mm
(9.57 in)

Height

457 mm
(17.99 in)

Noise level

43 dB

Weight

21.1 kg
(46.52 lb)

Description

The PC 3004 VARIO select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. With its high pumping speed and deep ultimate vacuum, this pump is suitable for demanding applications with even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process as necessary. And the VARIO control algorithm maintains the desired vacuum level without running the motor faster than necessary. This prevents bumping and foaming, makes the pump whisper quiet, and extends maintenance intervals. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection. Performance features VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
