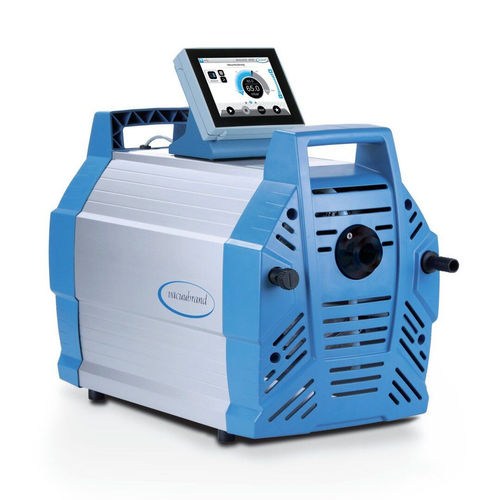

Diaphragm vacuum pump MD 12C NT VARIO select
dry230VACthree-stage

Diaphragm vacuum pump - MD 12C NT VARIO select - VACUUBRAND - dry / 230VAC / three-stage
Diaphragm vacuum pump - MD 12C NT VARIO select - VACUUBRAND - dry / 230VAC / three-stage
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
dry
Supply voltage
230VAC
Number of stages
three-stage
Applications
for laboratories, chemical process
Other characteristics
chemical-resistant
Ultimate vacuum

1.5 mbar, 3 mbar
(0.02 psi, 0.04 psi)

Flow rate

14.3 m³/h
(505 ft³/h)

Power

530 W
(0.72 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

533 mm
(21 in)

Width

260 mm
(10.24 in)

Height

450 mm
(17.72 in)

Noise level

47 dB

Weight

28.9 kg
(63.71 lb)

Description

The MD 12C VARIO select pump is an excellent solution for those who need high pumping speed and are working with high boiling point solvents. Combined with the reliability born of its chemical resistant fluoropolymer and perfluoroelastomer wetted materials, this pump delivers reliable performance for floor-standing rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process to maintain process control. With VARIO control, the pump runs only as fast is necessary. This extends the maintenance intervals and makes the pumping unit whisper quiet. Performance features VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory automatic boiling point detection and adjustment of the vacuum for short process times meets high vacuum requirements for large quantities of most high boiling solvents extraordinary diaphragm life for minimum operational and servicing costs Downloads
