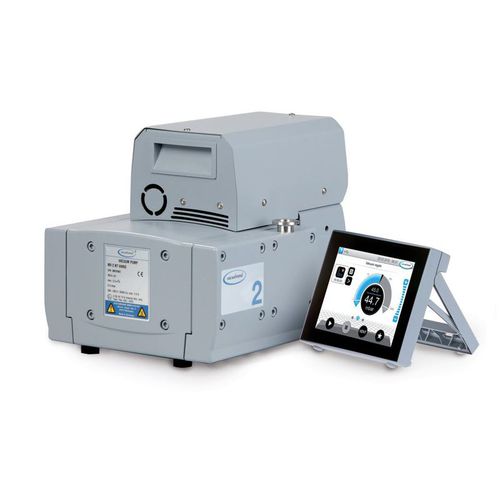

Diaphragm vacuum pump MV 2 VARIO select
oil-free220VAC230VAC

Diaphragm vacuum pump - MV 2 VARIO select - VACUUBRAND - oil-free / 220VAC / 230VAC
Diaphragm vacuum pump - MV 2 VARIO select - VACUUBRAND - oil-free / 220VAC / 230VAC
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC, 220VAC
Number of stages
four-stage
Applications
for laboratories
Other characteristics
stainless steel, variable-speed
Ultimate vacuum

0.3 mbar
(0 psi)

Flow rate

3.3 m³/h
(116.54 ft³/h)

Power

0.53 kW
(0.72 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

325 mm
(13 in)

Width

235 mm
(9.25 in)

Height

245 mm
(9.65 in)

Noise level

45 dB

Weight

19.1 kg
(42.11 lb)

Description

Four-stage diaphragm pumps - like the MV 2 VARIO select - are an excellent solution for continuous, oil-free pumping of non-corrosive gases at fractional millibar vacuum levels. Wetted parts are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of non-corrosive applications. The MV 2 VARIO select continuously adapts its motor speed to hold the desired vacuum level. That means the pump is whisper-quiet and generates ultra-low vibrations, and has high leak tightness. The highly flexible fabric-reinforced double FKM diaphragm is ideal for extended operating life. The VARIO® design includes the variable speed pump and the VACUU·SELECT vacuum controller with an external gauge head. The demand-responsive motor speed control on VARIO® models further extends the already long lifetimes of diaphragms and valves. Performance features VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory automatic boiling point detection and adjustment of the vacuum for short process times extraordinary diaphragm life for minimum operational and servicing costs contamination-free pumping and evacuation excellent ultimate vacuum, and even better ultimate vacuum with VARIO® version in TURBO·MODE for use as backing pump for turbo pumps
