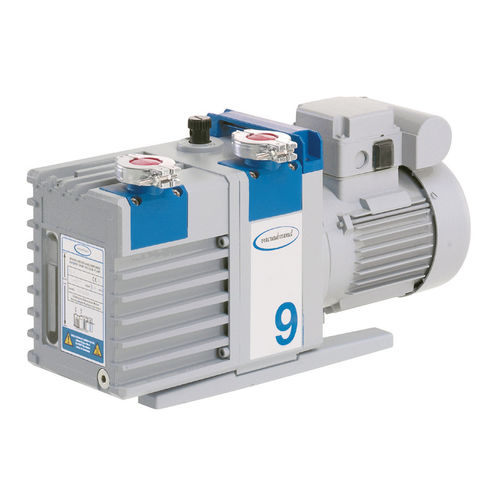

Rotary vane vacuum pump R seriesoil-lubricatedmulti-stagefor medical applications
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-lubricated
- Number of stages
- multi-stage
- Applications
- for medical applications, for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
- Other characteristics
- high-performance
- Ultimate vacuum
0 mbar, 0.1 mbar
(0 psi, 0 psi)- Flow rate
8.9 m³/h, 10.2 m³/h
(314.3 ft³/h, 360.21 ft³/h)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
460 mm
(18 in)- Width
152 mm
(5.98 in)- Height
232 mm
(9.13 in)- Noise level
52 dB
- Weight
21.4 kg, 24.2 kg
(47.18 lb, 53.35 lb)
Description
The RE 9 is a single-stage powerful rotary vane pump for fast evacuation of vessels and at higher gas flow rates. Typical applications are freeze drying, fine vacuum distillation and drying ovens. The single-stage rotary vane pump RE 9 is also available in various packages with matching accessories such as exhaust filter FO and valve VS 25. Rotary vane pumps are used for a process vacuum of a few mbar.
Performance features
very high flow rates even at vacuum levels approaching ultimate vacuum
high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
vacuum-tight at switch-off; external anti-suckback valve not needed
large oil volume: Long intervals between oil changes
ease of maintenance due to telescopic design
