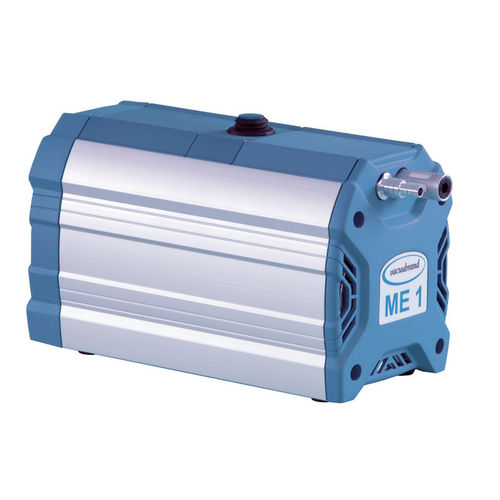

Diaphragm vacuum pump ME 1
oil-free230VAC220VAC

Diaphragm vacuum pump - ME 1 - VACUUBRAND - oil-free / 230VAC / 220VAC
Diaphragm vacuum pump - ME 1 - VACUUBRAND - oil-free / 230VAC / 220VAC
Diaphragm vacuum pump - ME 1 - VACUUBRAND - oil-free / 230VAC / 220VAC - image - 2
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC, 220VAC
Number of stages
single-stage
Applications
for medical applications, for laboratories, for the chemical industry, for gas, for water, chemical process, for pharmaceutical applications, for the plastics industry, OEM
Other characteristics
compact, low-noise level, portable
Ultimate vacuum

100 mbar
(1.45 psi)

Flow rate

0.7 m³/h, 0.85 m³/h
(24.72 ft³/h, 30.02 ft³/h)

Power

0.04 kW
(0.05 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

247 mm
(10 in)

Width

121 mm
(4.76 in)

Height

145 mm
(5.71 in)

Noise level

49 dB

Weight

5.4 kg
(11.9 lb)

Description

Vacuum filtration is one of the most common applications used for sample preparation in chemistry, microbiology, waste water control and other analytical processes. The ME 1 diaphragm pump offers a compact, high performance and easy-to-use solution which is perfect for single port filtrations. These oil-free diaphragm pumps provide a well-proven and extraordinarily long diaphragm life time with typically 15,000 operating hours. The functional, space saving and innovative design with visible top mounted power switch ensures convenient and quick operation for day to day lab work. The PTFE diaphragm and valves are rugged and provide high chemical resistance. An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and ultimate vacuum. One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use. Typical applications for the ME 1 are aqueous filtrations. With filtration at 100 mbar, 90% of atmospheric pressure is available as a driving force. If a certain pressure difference must not be exceeded, Performance features convenient, quick and simple to use due to the new top mounted power switch whisper quiet and very low vibration requires minimal benchtop space maintenance-free drive system and proven long diaphragm life wetted materials: PTFE, aluminum
