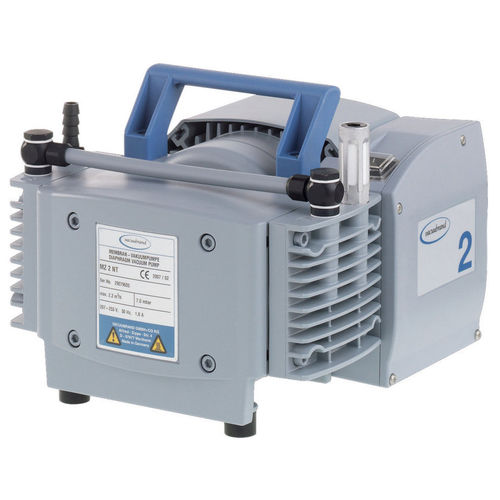

Diaphragm vacuum pump MZ 2 NT
oil-free230VACtwo-stage

Diaphragm vacuum pump - MZ 2 NT - VACUUBRAND - oil-free / 230VAC / two-stage
Diaphragm vacuum pump - MZ 2 NT - VACUUBRAND - oil-free / 230VAC / two-stage
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC
Number of stages
two-stage
Applications
for medical applications, for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
Other characteristics
low-noise level, portable
Ultimate vacuum

7 mbar
(0.1 psi)

Flow rate

2.2 m³/h
(77.69 ft³/h)

Power

0.18 kW
(0.24 hp)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Length

243 mm
(10 in)

Width

239 mm
(9.41 in)

Height

195 mm
(7.68 in)

Noise level

45 dB

Weight

11 kg
(24.25 lb)

Description

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics and allow a wide range of applications for non corrosive gases. The two-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 7 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The new NT-series features further improved performance data. Two-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping at medium vacuum requirements. In contrast to water jet pumps they do not consume water and therefore do not produce any contaminated waste water. Typical applications are vacuum ovens and aqueous filtrations. Performance features contamination-free pumping and evacuation high flow rate even near ultimate vacuum whisper quiet very low vibration exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
