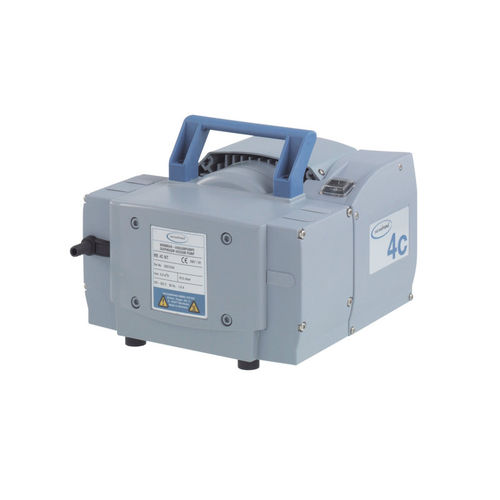

Diaphragm vacuum pump ME 4C NT
oil-free230VACsingle-stage

diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product

Go to the VACUUBRAND website for more information

Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC
Number of stages
single-stage
Applications
for gas, for laboratories, for the chemical industry, for exhaust gas, air sampling, water, chemical process, for pharmaceutical applications, for the plastics industry, high-temperature, for fuel cells, for recycling, for liquid transfer, for mass spectrometry, for distillation
Other characteristics
low-noise level, chemical-resistant, high-flow
Ultimate vacuum

70 mbar
(1.02 psi)

Flow rate

3.9 m³/h, 4.3 m³/h
(137.73 ft³/h, 151.85 ft³/h)

Power

0.18 kW
(0.24 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

254 mm
(10 in)

Width

243 mm
(9.57 in)

Height

198 mm
(7.8 in)

Noise level

45 dB

Weight

11.1 kg
(24.47 lb)

Description

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The NT-series features further improved performance data, higher tolerance for condensates and simplified maintenance. The ME 4C NT is also available as chemistry vacuum system ME 4C NT +2AK with inlet separator to protect the pump against particles and liquid droplets, plus outlet separator to collect condensate. One-stage chemistry-design diaphragm pumps are an excellent choice for applications with corrosive gases and vapors which do not require very deep vacuum levels. They do not consume water and therefore do not produce any contaminated waste water. Typical applications are filtration as well as concentration of solvents with low boiling points. The ME 4C NT is recommended for processes which require higher flow rates. The chemistry vacuum system ME 4C NT +2AK with inlet separator and condensate catchpot is an excellent choice for rugged applications and for collecting condensates at the exhaust of the pump. Performance features outstanding chemical resistance high performance even at low vacuum levels whisper quiet low vibration long diaphragm life, maintenance-free drive system
