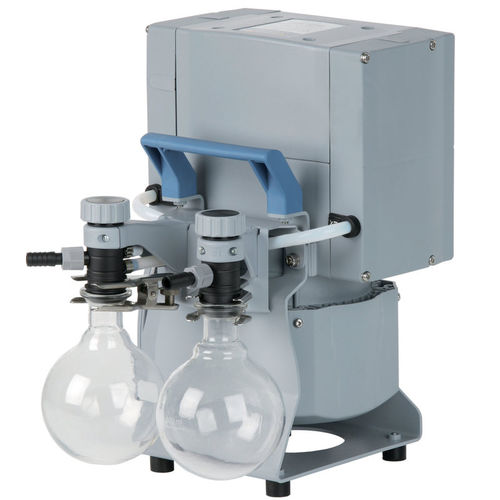

Diaphragm vacuum pump ME 8C NT +2AKoil-freesingle-stagefor medical applications
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Number of stages
- single-stage
- Applications
- for medical applications, for laboratories, for the chemical industry, for exhaust gas, for mass spectrometry, for water, chemical process, for recycling, for pharmaceutical applications, for the plastics industry, air sampling, for fuel cells, for distillation, for liquid transfer
- Other characteristics
- compact, low-noise level, chemical-resistant
- Ultimate vacuum
70 mbar
(1.02 psi)- Flow rate
7.1 m³/h, 7.8 m³/h
(250.73 ft³/h, 275.45 ft³/h)- Power
0.3 kW
(0.41 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
319 mm
(13 in)- Width
243 mm
(9.57 in)- Height
374 mm
(14.72 in)- Noise level
45 dB
- Weight
16.7 kg
(36.82 lb)
Description
Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance.
Performance features
outstanding chemical resistance and superior vapor tolerance
exceptionally high performance even at low vacuum
compact design
whisper quiet and very low vibration
long diaphragm life, maintenance-free drive system
