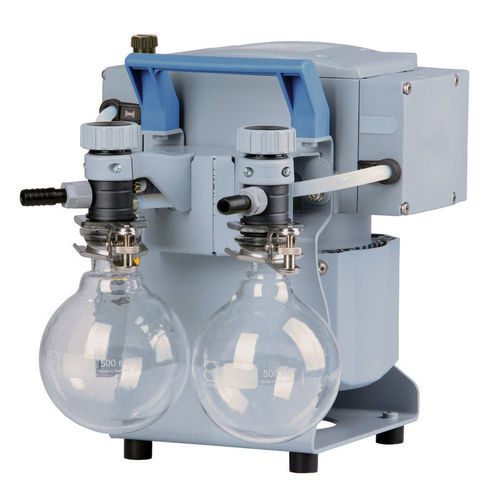

Diaphragm vacuum pump MZ 2C NT +2AKoil-free230VACtwo-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC
- Number of stages
- two-stage
- Applications
- for the chemical industry, for recycling, high-temperature, for mass spectrometry, for distillation, for medical applications, for laboratories, for gas, for exhaust gas, for water, chemical process, for liquid transfer, air sampling, for pharmaceutical applications, for the plastics industry, for fuel cells
- Other characteristics
- low-noise level, chemical-resistant
- Ultimate vacuum
7 mbar, 12 mbar
(0.1 psi, 0.17 psi)- Flow rate
2 m³/h, 2.3 m³/h
(70.63 ft³/h, 81.22 ft³/h)- Power
0.18 kW
(0.24 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
319 mm
(13 in)- Width
243 mm
(9.57 in)- Height
309 mm
(12.17 in)- Noise level
45 dB
- Weight
13.6 kg
(29.98 lb)
Description
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories where there are no requirements for condensation of solvent vapors at the outlet. Typical applications are vacuum concentrators, gel dryers and filtration. The separator at the inlet (AK), made of glass with protective coating, retains particles and liquid droplets. The separator at the outlet collects condensate, avoids condensate backflow towards the pump, and reinforces the whisper-quiet operation of the pump.
Performance features
outstanding chemical resistance and superior vapor tolerance
high performance even at low vacuum levels
optimized vacuum even with gas ballast for condensate purge
whisper quiet and very low vibration
separators at inlet and outlet to collect condensates
