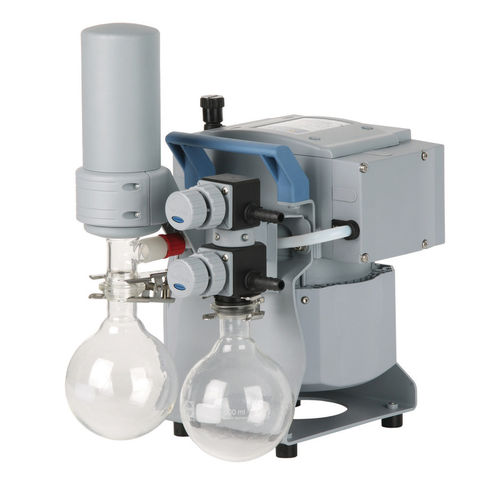

Diaphragm vacuum pump MZ 2C NT +AK SYNCHRO+EKoil-freetwo-stagefor water
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Number of stages
- two-stage
- Applications
- for water, for medical applications, for laboratories, for the chemical industry, high-temperature, for gas, for liquid transfer, for exhaust gas, for recycling, chemical process, for distillation, for pharmaceutical applications, air sampling, for the plastics industry, for fuel cells, for mass spectrometry
- Other characteristics
- compact, low-noise level, chemical-resistant
- Ultimate vacuum
7 mbar, 12 mbar
(0.1 psi, 0.17 psi)- Flow rate
2 m³/h, 2.3 m³/h
(70.63 ft³/h, 81.22 ft³/h)- Power
0.2 kW
(0.27 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
326 mm
(13 in)- Width
248 mm
(9.76 in)- Height
402 mm
(15.83 in)- Noise level
45 dB
- Weight
14.5 kg
(31.97 lb)
Description
This chemistry vacuum system provides the simultaneous operation of two processes with only one pump. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens. Each vacuum connection is provided with a manual flow control valve to regulate the effective pumping speed. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.
Performance features
outstanding chemical resistance and superior vapor tolerance
high performance even at low vacuum levels
optimized vacuum even with gas ballast for condensate purge
simultaneous operation of two independent vacuum applications, with reliable check valves to prevent interference between applications
excellent environmental friendliness due to efficient solvent recovery
