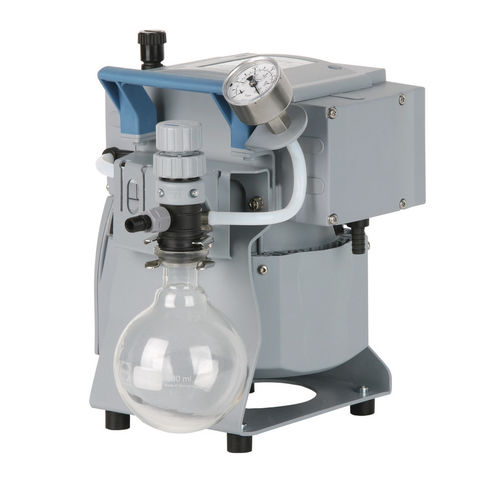

Diaphragm vacuum pump MZ 2C NT +AK+M+Doil-free230VACtwo-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC
- Number of stages
- two-stage
- Applications
- chemical process, for recycling, for mass spectrometry, for medical applications, for laboratories, for the chemical industry, for gas, for exhaust gas, for water, high-temperature, for pharmaceutical applications, for the plastics industry, for liquid transfer, for fuel cells, air sampling, for distillation
- Other characteristics
- low-noise level, chemical-resistant
- Ultimate vacuum
7 mbar, 12 mbar
(0.1 psi, 0.17 psi)- Flow rate
2 m³/h, 2.3 m³/h
(70.63 ft³/h, 81.22 ft³/h)- Power
0.18 kW
(0.24 hp)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Length
310 mm
(12 in)- Width
243 mm
(9.57 in)- Height
313 mm
(12.32 in)- Noise level
45 dB
- Weight
13.4 kg
(29.54 lb)
Description
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories where there are no requirements for condensation of solvent vapors at the outlet. The manual flow control valve regulates the effective pumping speed at the vacuum connection, the vacuum manometer offers an analog vacuum display. This system is well proven for filtration. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets.
Performance features
outstanding chemical resistance and superior vapor tolerance
high performance even at low vacuum levels
optimized vacuum even with gas ballast for condensate purge
whisper quiet and very low vibration
manual vacuum control, analog vacuum display
