Diaphragm vacuum pump PC 201 NToil-free230VACthree-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 230VAC
- Number of stages
- three-stage
- Applications
- for medical applications, for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
- Other characteristics
- low-noise level, chemical-resistant
- Ultimate vacuum
1.5 mbar, 3 mbar
(0.02 psi, 0.04 psi)- Flow rate
3.4 m³/h, 3.8 m³/h
(120.07 ft³/h, 134.2 ft³/h)- Power
0.25 kW
(0.34 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
326 mm
(13 in)- Width
243 mm
(9.57 in)- Height
402 mm
(15.83 in)- Noise level
45 dB
- Weight
17.5 kg
(38.58 lb)
Description

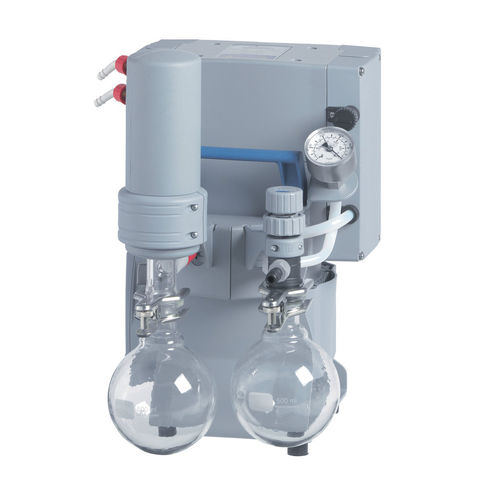

This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens with high boiling solvents. The manual flow control valve regulates the effective pumping speed at the vacuum connection; the vacuum manometer offers an analog vacuum display. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The exhaust waste vapor condenser enables near-100-percent solvent recovery.
Performance features
outstanding chemical resistance and superior vapor tolerance
exceptionally high performance even at low vacuum
excellent ultimate vacuum even with gas ballast
manual vacuum control, analog vacuum display
excellent environmental friendliness due to efficient solvent recovery
