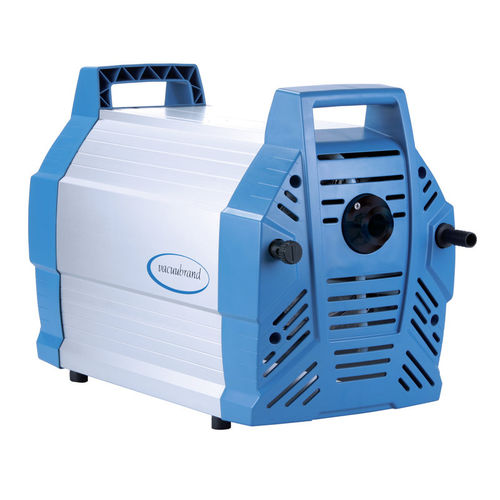

Diaphragm vacuum pump MD 12C NT
oil-free230VAC220VAC

Diaphragm vacuum pump - MD 12C NT - VACUUBRAND - oil-free / 230VAC / 220VAC
Diaphragm vacuum pump - MD 12C NT - VACUUBRAND - oil-free / 230VAC / 220VAC
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC, 220VAC
Number of stages
three-stage
Applications
for medical applications, for laboratories, for the chemical industry, for gas, chemical process, for pharmaceutical applications
Other characteristics
chemical-resistant
Ultimate vacuum

2 mbar, 4 mbar
(0.03 psi, 0.06 psi)

Flow rate

12 m³/h, 13.3 m³/h
(423.78 ft³/h, 469.69 ft³/h)

Power

0.53 kW
(0.72 hp)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

533 mm
(21 in)

Width

260 mm
(10.24 in)

Height

359 mm
(14.13 in)

Noise level

52 dB

Weight

28.1 kg
(61.95 lb)

Description

Three-stage chemistry diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet the highest requirements. The three-stage design of the eight-cylinder MD 12C NT pump provides the advantageous combination of high pumping speed and very low ultimate vacuum. All internal parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. With its gas ballast valve the MD 12C NT is optimally prepared for pumping easily condensable vapors, thanks to the very good ultimate vacuum even with open gas ballast valve also for high boiling solvents. Upgrade kits such as inlet separator (AK) and exhaust vapor condenser (EK) enable a later adaptation to changed process requirements. Eight-cylinder NT pumps features quiet operation with smooth, easy-to-clean surfaces. Performance features outstanding chemical resistance and superior vapor tolerance reduced process time due to particularly high pumping speed even near ultimate vacuum whisper quiet and very low vibration very good ultimate vacuum even with open gas ballast valve for condensate purge long diaphragm lifetime, maintenance-free drive system
